CMA-Harness logo CMA-Harness

Long-horizon multimodal memory, retrieval, generation, and editing

Cognitive-structured Multimodal Agent

for Multimodal Understanding, Generation, and Editing

Feng Wang1,*, Canmiao Fu2, Zhipeng Huang2, Chen Li2, Jing LYU2, Ge Li1

1Peking University    2WeChat Vision, Tencent Inc.

*Work done during an internship at WeChat Vision, Tencent Inc.

Paper Demo Method Benchmark Results Code BibTeX Dataset

We introduce a memory-centric multimodal agent that externalizes visual history into Episodic Visual Memory, selectively retrieves relevant visual episodes, and plans understanding, generation, editing, and composition actions through a multimodal executive controller.

91.4% English retrieval accuracy over 20-turn sessions
82.0% Hard subset retrieval accuracy
12.7s Runtime per turn, nearly half of the 32B all-context baseline
8.53/10 Chinese overall Gemini generation quality score

Method

A cognitive structure for long-horizon multimodal interaction

Our agent externalizes visual history into an addressable memory, retrieves only the episodes relevant to the current turn, and lets a multimodal controller decide whether to understand, generate, edit, or compose. The pipeline below shows how these components fit together end‑to‑end.

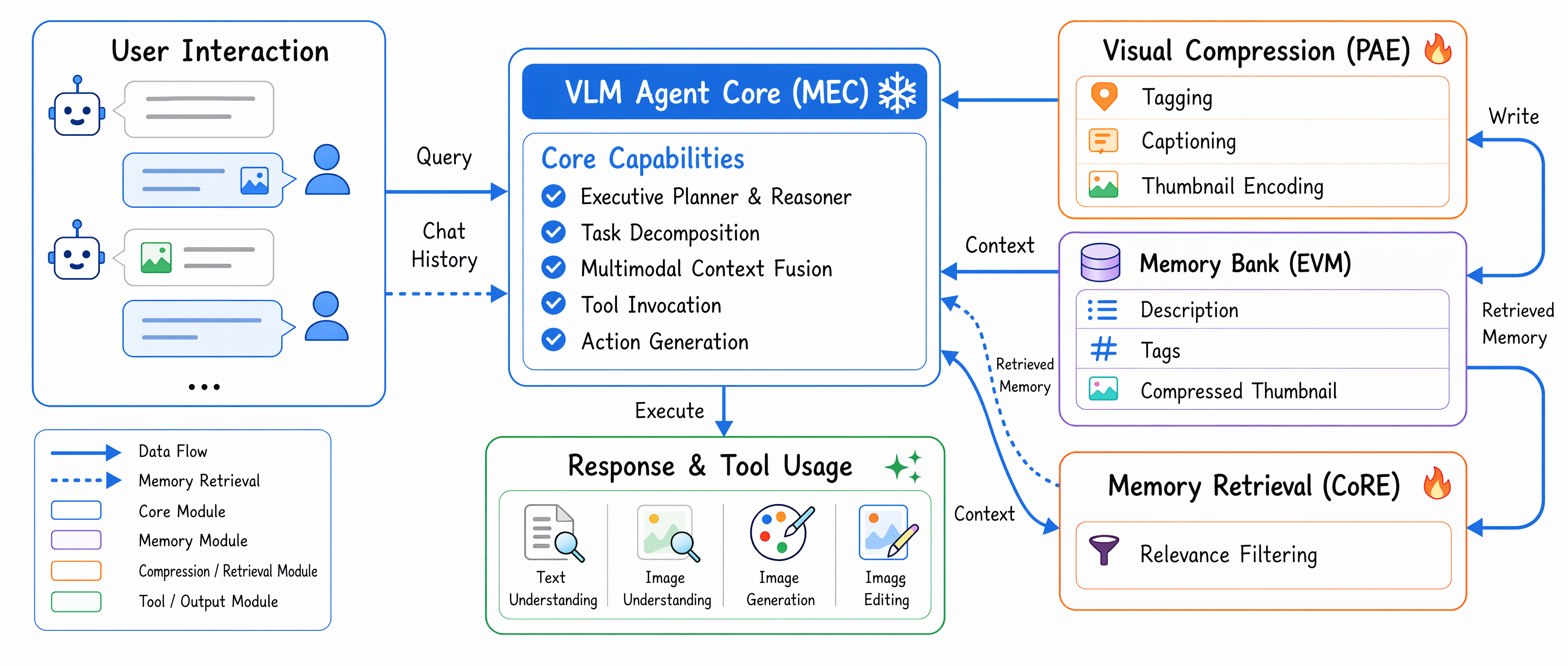

Pipeline of the Cognitive-structured Multimodal Agent.
End-to-end pipeline: episodic visual memory, cognitive retrieval engine, and multimodal executive controller.

Structured visual memory

Incoming and generated images are compressed into captions, tags, thumbnails, and metadata, allowing visual evidence to persist without repeatedly occupying the model context window.

Selective cross-turn retrieval

The Cognitive Retrieval Engine selects only the visual episodes relevant to the current user turn, improving grounding while reducing visual-token overhead.

Executive task control

The Multimodal Executive Controller infers whether a turn requires understanding, generation, editing, composition, or pure chat, then routes the task accordingly.

Training for memory use

A Unified Scenario Engine generates structured multi-turn dialogues with retrieval annotations, enabling SFT and RL optimization for memory construction and retrieval.

Benchmark

M2CA-Bench evaluates cross-turn visual recall

The Multi-turn Context Agent Benchmark (M2CA-Bench) is a held-out evaluation set of 100 sessions × 20 turns (2,000 turns) designed to stress-test long-horizon multimodal grounding. It is generated by our Unified Scenario Engine and stratified by difficulty so that memory construction, retrieval, and downstream generation/editing can be diagnosed independently.

2,000evaluation turns
10020-turn sessions
55topics × 8 domains
4difficulty strata

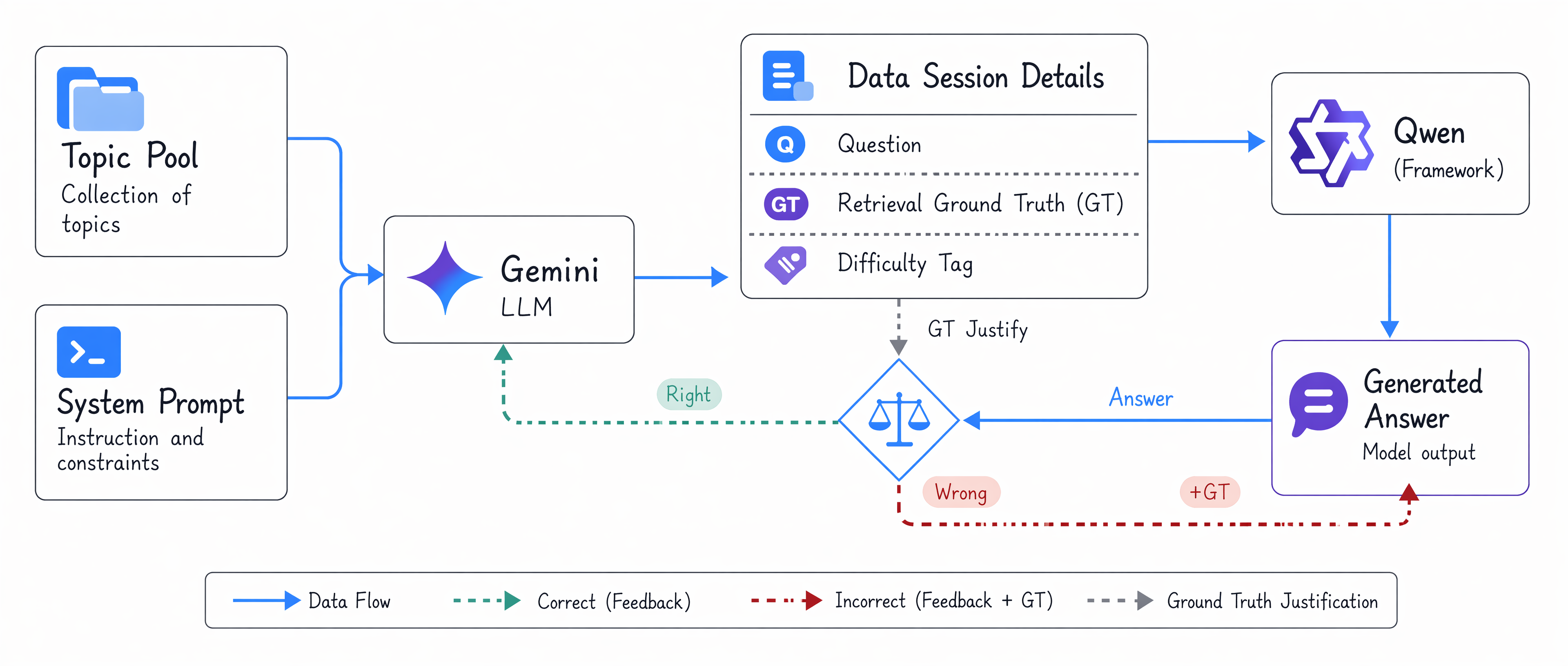

Data pipeline for structured multi-turn scenario generation.
Unified Scenario Engine — a closed-loop pipeline (Gemini user simulation → multi-agent answer → GT-justify retrieval verification → next turn) that produces every M2CA-Bench session with turn-level retrieval supervision.

Structured scenario representation

Each turn is annotated as (ti, τi, Ri*, di, fi): user input, task type, ground-truth retrieval set, difficulty, and challenge tags. Topics span 8 domains (commercial, industrial, educational, public service, hospitality, natural landscape, scientific, space) with four task modes per topic — generate, edit, cross-reference-edit, understand.

Four difficulty strata

Turns are stratified by topic shift, temporal span, multi-image interaction, and ambiguity:

  • easy — same-topic, short-span references
  • medium — mid-range recall across turns
  • hard — long temporal spans or topic shifts
  • very_hard — multi-image comparison, fusion edits, ambiguous references

Hard-negative design

To block shortcut learning, M2CA-Bench injects two adversarial families: high-similarity confounders (near-duplicate images differing only in color, lighting, or material), and negative retrieval samples — semantic negatives that mention past images conversationally without needing them, and structural negatives that explicitly request a new generation.

Three evaluation subsets

Retrieval accuracy is reported on three cuts of increasing difficulty, aligned with typical long-horizon failure modes:

  • All — all 2,000 turns
  • Long — turns 11–20, testing extended memory
  • Hard — very_hard subset within turns 11–20
91.4%All · 2,000 turns
89.4%Long · turns 11–20
82.0%Hard · very_hard @ 11–20

Visual results

Long-horizon dialogue examples with generation, editing, and visual recall

Showcase Open full figure

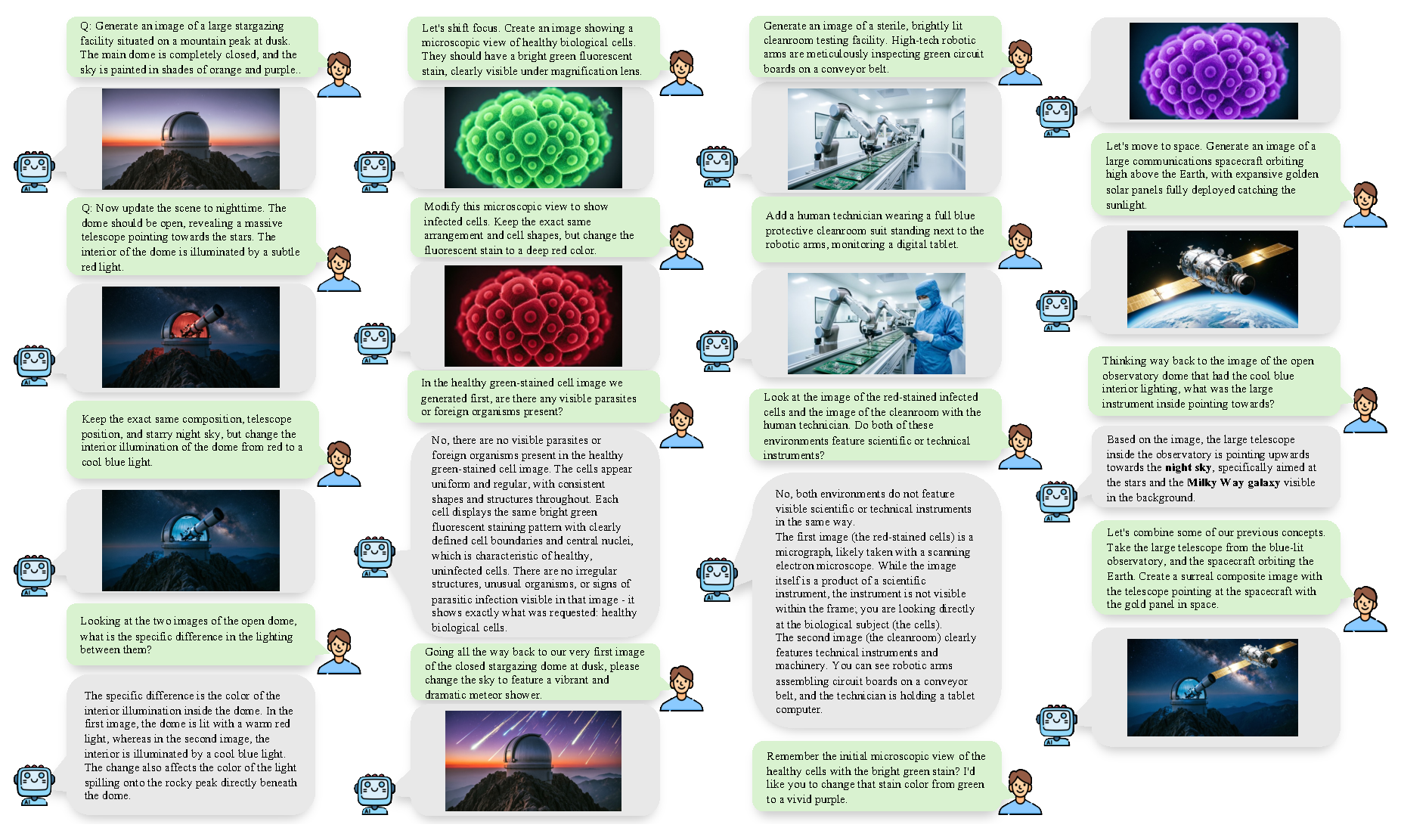

Long-horizon multimodal dialogue showcase.
Qualitative Comparison Open full figure
Qualitative comparison of long-horizon multimodal dialogue results.
Additional Dialogue Example Open full figure

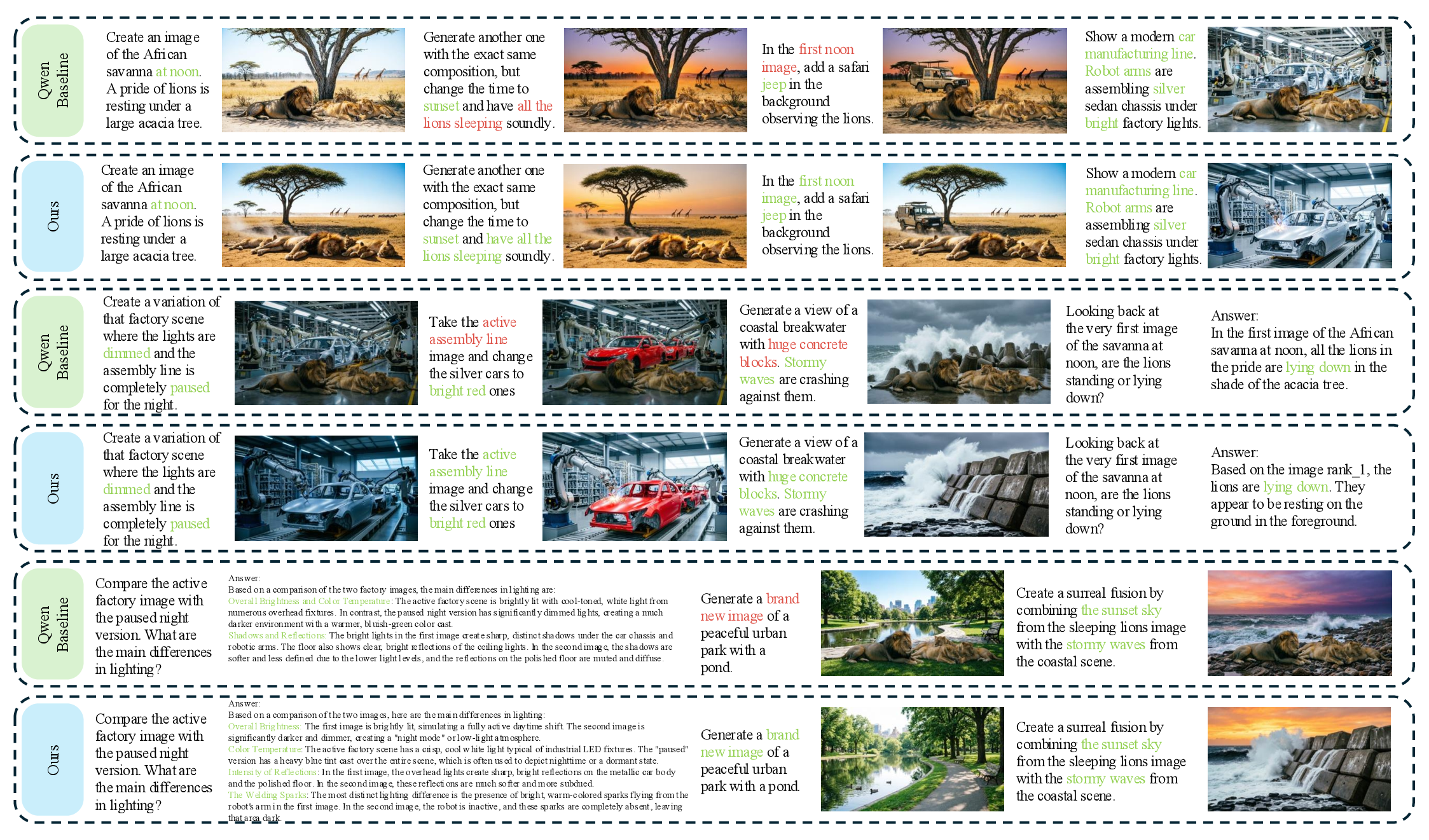

Additional dialogue example for multimodal generation, editing, and visual recall.

Deployment

CMA-Harness extends the same cognitive structure to open-ended workflows

Persistent multimodal memory

Session memories, user preferences, thumbnails, image cards, and gallery assets remain addressable across turns.

Tool-augmented action space

Web search, image retrieval, generation, editing, composition, deterministic collage, and inspection tools expand MEC's decisions.

Interactive execution loop

Tool results are appended back into the dialogue state, enabling iterative search, retrieval, generation, editing, and final response synthesis.

Citation

BibTeX

@article{wang2026cognitive,
  title   = {Cognitive-structured Multimodal Agent for Multimodal Understanding, Generation, and Editing},
  author  = {Wang, Feng and Fu, Canmiao and Huang, Zhipeng and Li, Chen and LYU, Jing and Li, Ge},
  journal = {arXiv preprint arXiv:2607.08497},
  year    = {2026},
  eprint  = {2607.08497},
  archivePrefix = {arXiv},
  primaryClass = {cs.CV}
}
